Products > Oilfield Sand/Slurry/Mud Pumps > Oilfield Mud Pump > Mud Pump Valve Seat Puller Assembly and Puller Head

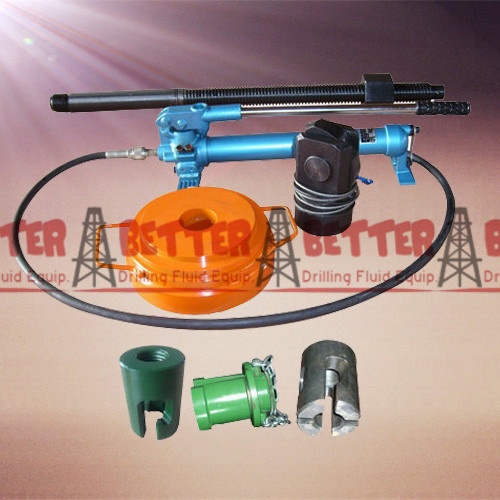

Mud Pump Valve Seat Puller Assembly and Puller Head Mud Pump Valve Seat Puller Assembly and Puller Head Mud Pump Valve Seat Puller Assembly and Puller Head Mud Pump Valve Seat Puller Assembly and Puller Head
Product name : Mud Pump Valve Seat Puller Assembly and Puller Head
Model No. : API 4# 5# 6# 7#8
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8413910000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

Mud pump valve seat puller is used for pulling the installed valve seats from mud pump fluid end module. During the process of replacing the valves seat and maintaining the mud pumps, this tool will be more effective to finish the maintains work with fewer manpower and shorter time.


3-Web Type, 4-Web Type and Full Open type

The valve seat puller’s type depends on the valve seat puller heads, which is connected with valve seat directly. (P/N: M1100, 181234501,181240508, M1060, 8401977, 181235052, 8401985, 181235300)

DESCRIPTION
API
4-WEB
3-WEB
KING FULL OPEN
G2 FULL OPEN
ROUGHNECK
FULL OPEN

Valve Seat Puller Head

4
1700-4
N/A
4-PH
N/A
1700-4
5
1700-5
N/A
5-PH
N/A
1700-5
6
1700-6
N/A
6-PH
M1089
1700-6
7
1700-7
1700-7R
7-PH
M1092
1700-7

For more details, please contact our sales.
