Product name : Kemper Style Hammer Seal Union
Model No. : BT-U Kemper series
Quality Standard : #API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8431431000
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:


BT-U Kemper series Hammer Seal Union
Equivalent to Kemper™ style Hammerseal™ Union

BETTER BT-U KH series Hammer Seal Union is specialized in manufacturing tank unions, size from 4”to 20”, with butt welded connection. Tank union or Hammer-seal Union is widely used for mud tank connecting lines, it is an updated design based on Air-O-Grip Union. Even if the tanks are not aligned perfectly, it still made up tight for a non-leak seal, and fast installation and uninstall.

Technical Parameter-
Working medium: Oil based mud, water based mud or other drilling fluid
Medium temperature: 0℃~90℃, Viton seal for Hi-temp.
Ambient temperature:-40℃~55℃
Sealing fluid pressures up to 150 psi

Specification-




Type

Connect Pipe O.D.

Female Sub *

Weld to

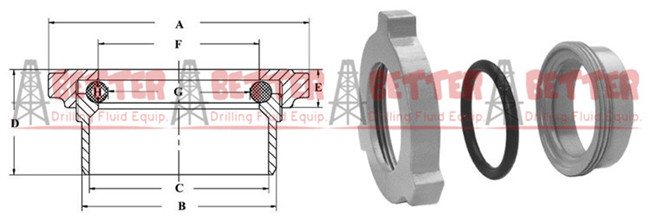

Mud Tank Union Dimensions in mm

A

B

C

D

E

F

G

H
4-inch
4 ½”(114.3mm)
6”
264
168
150
127
50
155
114
21
6-inch
6 5/8”(168.3mm)
8”
340
219
200
127
50
208
168
21
8-inch
8 5/8”(219.1mm)
10”
343
273
253
127
50
258
219
21
10-inch
10 3/4” (273.1mm)
12”
432
325
305
127
50
311
273
21
12-inch
12 3/4”(323.9mm)
14”
491
355
336
127
50
364
324
21
14-inch
14” (355.6mm)
16”
557
406.4
381
127
50.8
395
356
21
16-inch*
16”(406.4mm)
18”
/
/
/
/
/
/
/
/
18-inch*
18”(457mm)
20”
/
/
/
/
/
/
/
/
20-inch*
20”(508mm)
22”
/
/
/
/
/
/
/
/

Note:
* Female Sub Welding Size is designed according to the actual welding request, Butt-weld inside diameter (C) dependent on pipe schedule.
** Size 16-inch and above size needs to customize.
