Products > Oilfield Sand/Slurry/Mud Pumps > Centrifugal Sand Pump > Mission Sandmaster style Centrifugal Sand Pump
Mission Sandmaster style Centrifugal Sand Pump Mission Sandmaster style Centrifugal Sand Pump Mission Sandmaster style Centrifugal Sand Pump Mission Sandmaster style Centrifugal Sand Pump

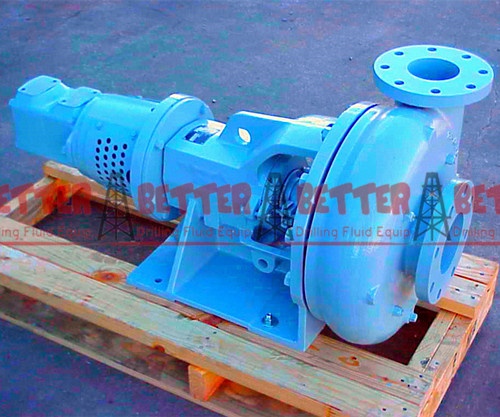

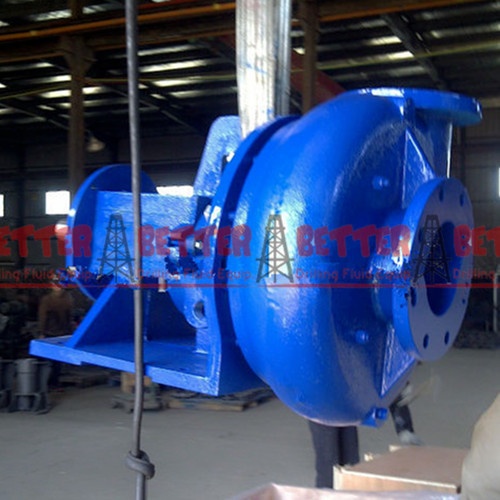

Product name : Mission Sandmaster style Centrifugal Sand Pump
Model No. : BT-SB Sandmaster series
Quality Standard : API & ISO
Origin : CN
Package : Plywood case / Steel Pallet
HS code : 8413709990
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

BT-SB Sandmaster series Centrifugal Sand Pump
Mission Sandmaster style with Short Frame for the Compact Application


BETTER BT-SB Sandmaster series centrifugal pumps are designed with all of the features of the standard model, but it has more compact frame and can be adapted for hydraulic motor drive. These features make it ideal for use in application such as oilfield fracturing truck, cementing, charging pump for water well drilling. The frame and shaft has been shorten 4” to compare with the general series. It is a choice when space is a premium and prime mover options and limited.

Feature
  • Compact heavy-duty frame design for small space;
  • Multiple application in the oil and gas industrial;
  • Full open impeller reduces shaft loading;
  • Replaceable stuffing box cover,
  • Available in hard ductile iron, high chrome alloy fluid ends(casing, impeller, wear pad, stuffing box), customized fluid ends in stainless steel or aluminum bronze acceptable;
  • Available in 8 different size, 3x2, 4x3, 5x4, 6x5, 8x6, 10x8;
  • One-piece concentric and thicker casing with same power end;
  • SKF bearings or equal;
  • Oil or grease lube available; oil lube is for speeds in excess of 2400rpm; 3500rpm is available for 3x2x13 and 4x3x13 pump;
  • Completely interchangeable with Mission™ Sandmaster™ and MCM™ Mud Master™ and all other popular brand design in the market;
  • Spare parts are interchangeable with the standard model.
  • The pumps can be unitized with hydraulic motors driven.

Common Application
Barite, ferric oxide and mineral oil
Base drilling muds
Glass fibers
Sugar processing
Ash or coal conveyors
Cement
Mine de-watering
Lime slurry
Kaolin clay
Crystalline forms
